Ultrasonic Metal Welding Solution Provider
| Condition | New |
| Machine Type | Welding Machine |
| Applicable Industries | Lithium ion Battery |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product |
| Warranty of core components | 1 Year |
| Core Components | Welder |
| Place of Origin | Guangzhou, China |
| Warranty | 1 Year |
| Key Selling Points | Competitive Price |
| Weight (kG) | 92KG |
| Brand Name | JHN |
| Voltage | 220V |
| Current | 50Hz |
| Rated Capacity | Customized |
| Rated Duty Cycle | Customized |
| Dimensions | 60cmx65cmx55cm |
| Usage | Battery tab/foil/strip welding |
| Control mode | CPU control |
| Welding Area | 1cm(L)x 4mm(W) |
| Max.Power Consumption | 4200W |
| Ultrasonic Frequency | 20kHz |
Introduction

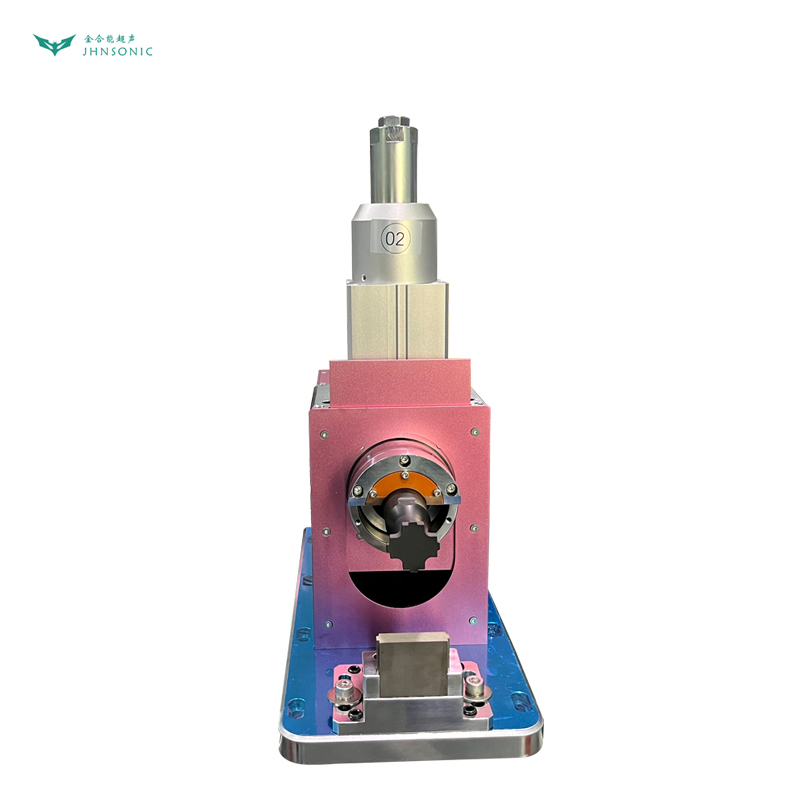

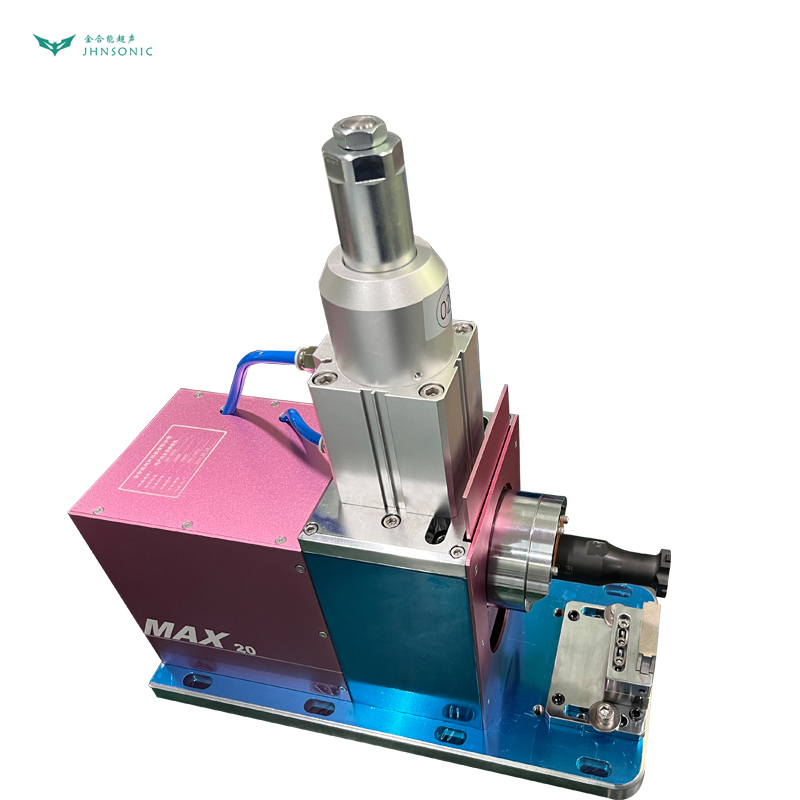

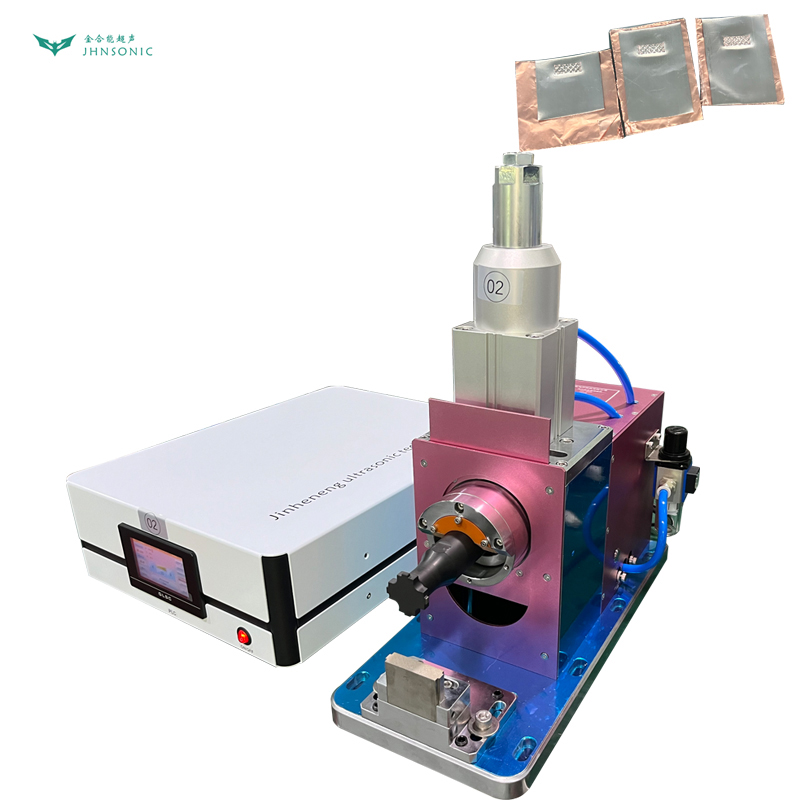

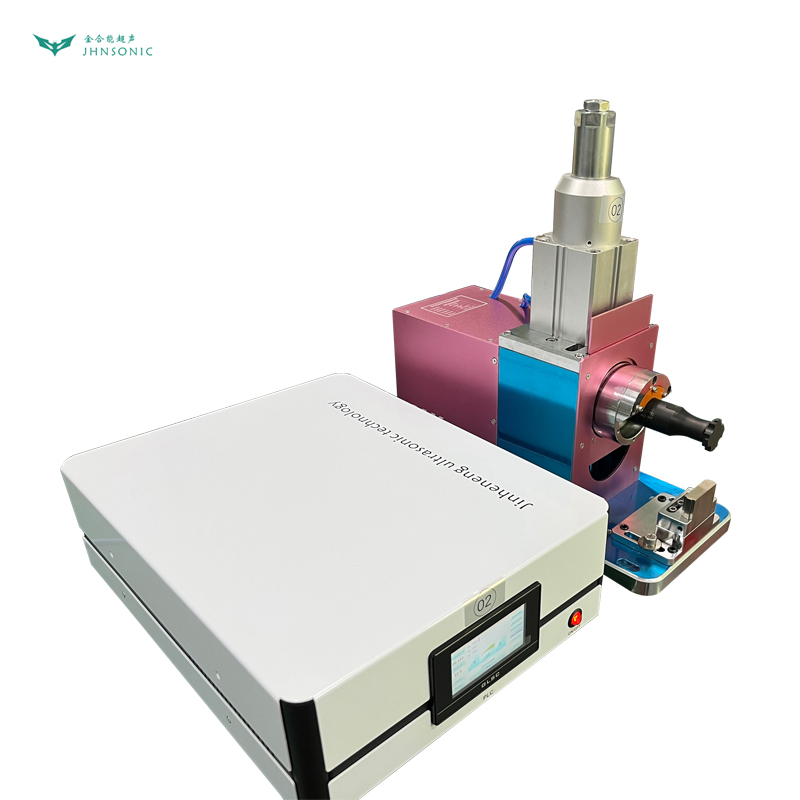

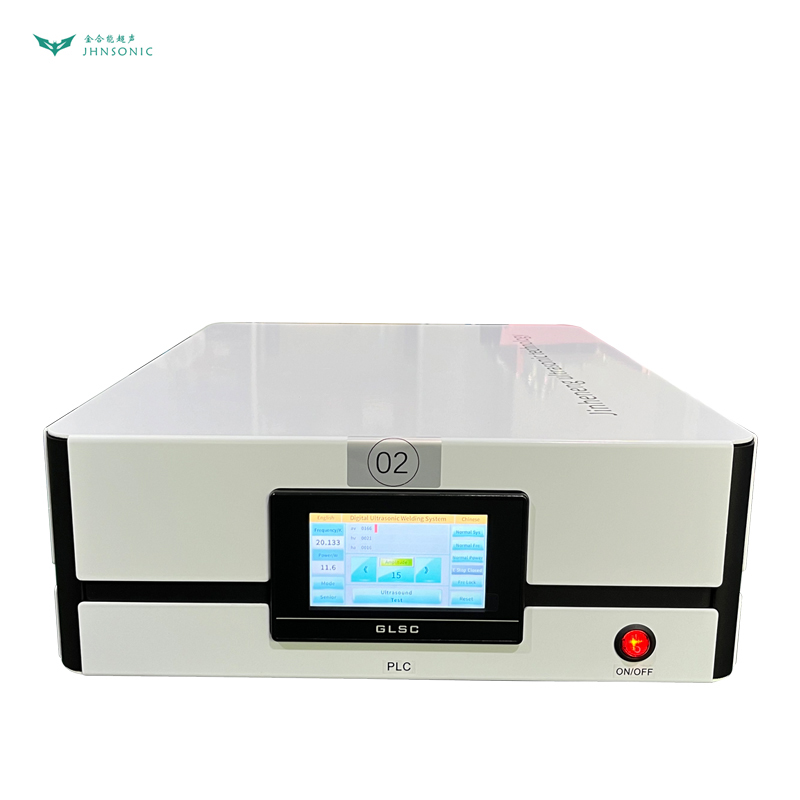

The ultrasonic metal welding machine is designed for Lithium battery tab welding with touch-screen controller. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion pouch cells in R&D laboratories and production line.
The 4200w battery welder can weld stacked electrode with 20-60 layers aluminum foil or copper foil with Al tab and Nickel tab.
| Specifications | |
| Features | Preset welding programs selectable for Al and Cu (Note: Welding power can bereadjusted to fit the needs for welding other types of metals such as Al, Ni, copper...). |
| Input Voltage | 220V |
| Max. PowerConsumption | 2000W-12000W->can be customized |
| Welding Area | 1cm(L)x4mm(W) |
| Welding Head | The welding heads and welding bases are included for welding both aluminum & copper current collectors from 2 to 40 layers |
| UltrasonicFrequency | 20K Hz |
| ProductDimensions | 1.Controller: 600mm(L)x400mm(W) x170mm(H) 2.Welder: 600mm(L)x250mm(W)x500mm(H) |
| Net Weight | 65kg |
| Compliance | CE Certificate |
| Warranty | One Year limited warranty with lifetime support |
| Application Notes | Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes. |
Package and delivery
1. Standard exported package : Internal anti-collision protection, external export wooden box packaging.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
